It is an upgrade based on the solar inverter, it contains the function of a solar inverter to convert DC to AC, and also adds a built-in solar controller, such as MPPT or PWM type.
The inverter delivers a stable and clean pure sine wave output, providing high-quality power for sensitive electronic devices and appliances.
The hybrid solar power inverter supports both grid-tie and off-grid operations. In grid-tie mode, it seamlessly integrates with the grid, utilizing the PV input and feeding excess power back into the grid. In off-grid mode, it operates independently, supplying power from the solar panels and battery storage.
The hybrid inverter 48V incorporates a 48VDC nominal output voltage in battery mode, allowing for efficient energy storage and utilization. It offers a maximum second load capacity of 2067W in battery mode, ensuring uninterrupted power supply during grid outages.

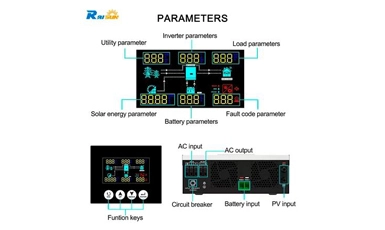

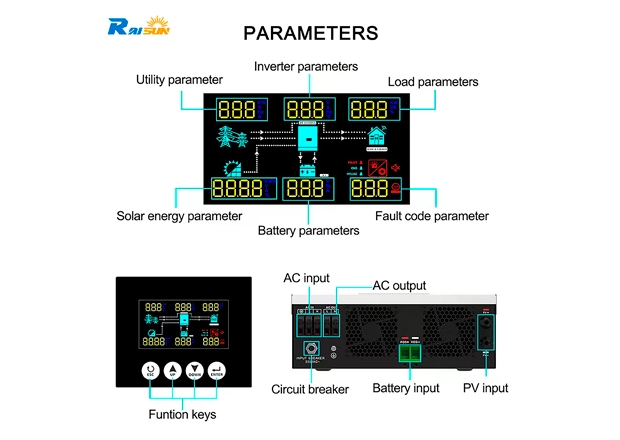

The 48v solar inverter features an intuitive LCD display that provides real-time monitoring of important parameters such as PV input voltage, AC output voltage, battery status, and system performance.
Equipped with RS232 and WIFI communication ports, the power solar inverter facilitates seamless integration into monitoring and control systems.
| Model | Raisun RSI23-6.2KW | ||
| Phase | 1-Phase | ||
| Maximum PV Input Power | 6500W | ||
| Rated Output Power | 6200W/6000VA | ||
| Maxium Solar Charging Current | 120A | ||
| GRID-TIE OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 240VAC | ||
| Output Voltage Range | 195.5～253VAC | ||
| Nomimal Output Current | 27.0A | ||
| Power Factor | ＞0.99 | ||
| Feed-in Grid Frequency Range | 59～61±1Hz | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER(V2.0) | |||
| Full Load | 6200W | ||
| Maximum Main Load | 6200W | ||
| Maximum Second Load(Battery mode) | 2067W | ||
| Main Load Cut Off Voltage | 44VDC | ||
| Main Load Return Voltage | 48VDC | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | ||
| Nominal Operating Frequency | 50/60Hz | ||
| Surge Power | 12400W | ||
| PV Input(DC) | |||
| Maximum DC Voltage | 360VDC/500VDC | ||
| MPPT Voltage Range | 90VDC～450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 48VDC | ||
| Output Wavefrom | Pure Sine Wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charging Current(Solar to AC) | 120A | ||
| Maximum AC Charging Current | 110A | ||
| PHYSICAL | |||
| Dimension, D×W×H | 420*310*110mm | ||
| Net Weight(kgs) | 11 | ||
| TERFACE | |||
| Communication Port | RS232/WIFI | ||
| Environment | |||
| Humidity | 5%～95% | ||
| Operating Temperature | -10℃~50℃ | ||
