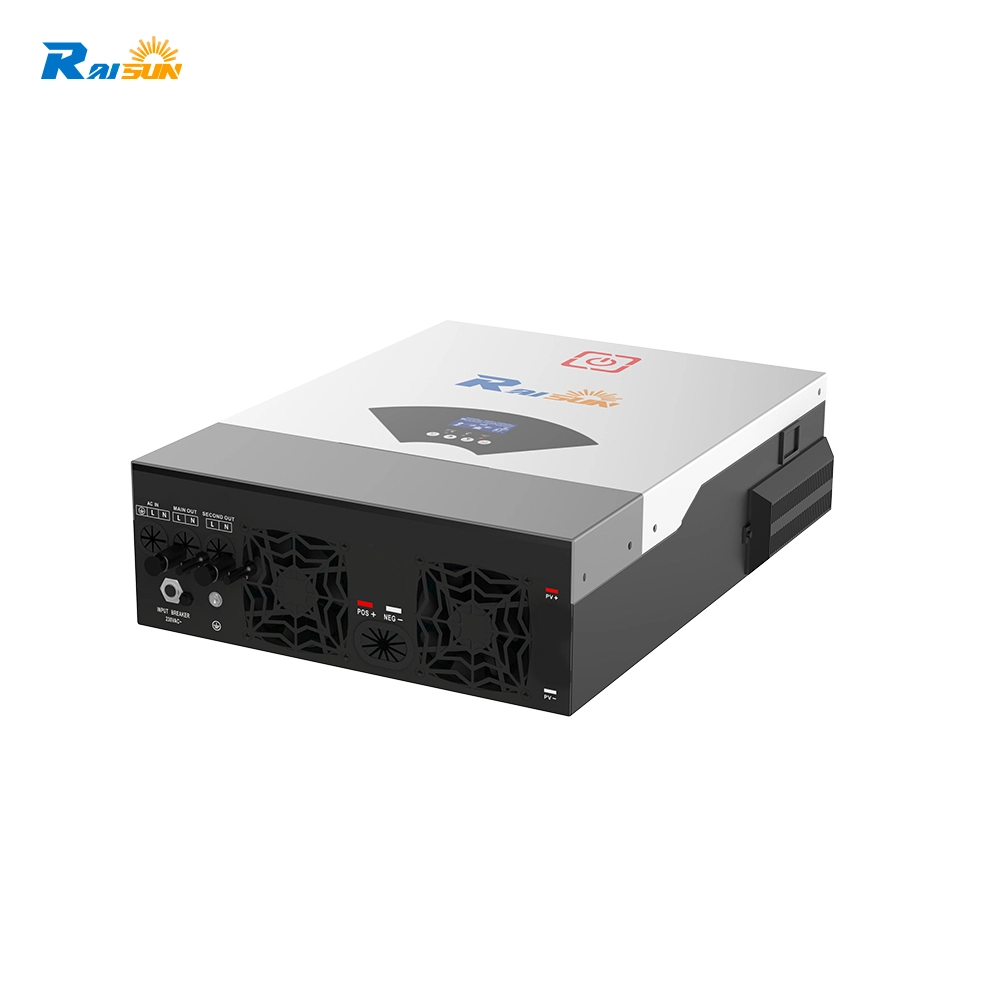

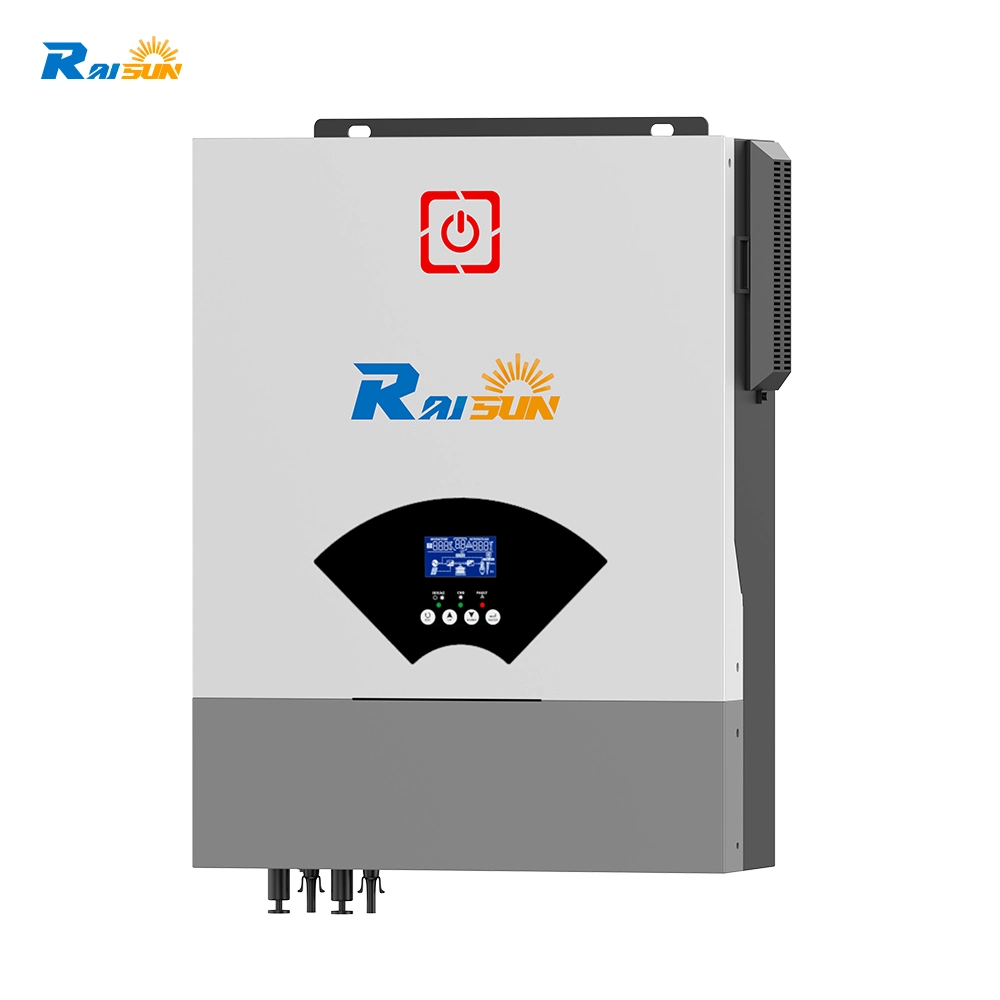

RSI24 Grid Tie Solar Inverter offers pure sine wave technology for seamless on/off grid use, self-consumption capability, and a wide PV input voltage range (90-500VDC). Enjoy features such as WIFI connectivity, smart battery optimization, and built-in anti-dusk protection for robust performance in any environment.
◆ Pure sine wave solar inverter(on/off grid)
◆ Self-consumption and feed-in to the grid

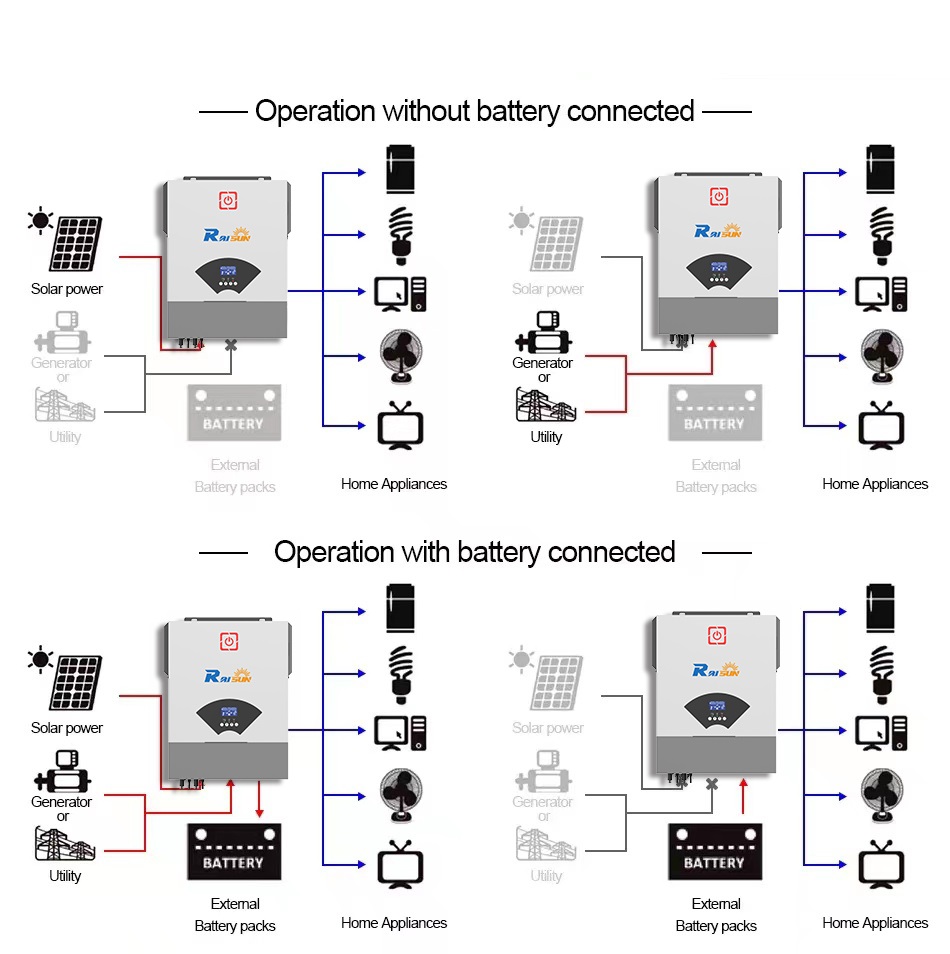

◆ Inverter running without battery
◆ Output power factor 1.0
◆ High PV input voltage range(90~500VDC)
◆ WIFI&GPRS available for IOS and Android
◆ Built-in anti-dusk kit for harsh environment
◆ Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
◆ Smart battery charge design to optimize battery life
◆ One-click restoration to factory settings
◆ Dual PV Input and output
◆ Built-in lithium battery automatic activation
◆ Touch button
| Model | Raisun RSI24-7.2KW | Raisun RSI24-8.2KW | Raisun RSI24-10.2KW |
| Phase | 1-Phase | ||
| Maximum PV Input Power | 8200W | 8200W | 10200W |
| Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA |
| Maxium Solar Charging Current | 160A | 160A | 180A |
| GRID-TIE OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 200/230/240VAC | ||
| Output Voltage Range | 195.5～253VAC | ||
| Nomimal Output Current | 31.3A | 35.6A | 44.3A |
| Power Factor | ＞0.99 | ||
| Feed-in Grid Frequency Range | 49±1Hz～51±1Hz | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER(V2.0) | |||
| Full Load | 7200W | 8200W | 10200W |
| Maximum Main Load | 7200W | 8200W | 10200W |
| Maximum Second Load(Battery mode) | 2400W | 2733W | 3400W |
| Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC |
| Main Load Return Voltage | 48VDC | 48VDC | 48VDC |
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | 40A | 50A |
| Nominal Operating Frequency | 50/60Hz | ||
| Surge Power | 14400W | 16400W | 20400W |
| PV Input(DC) | |||
| Maximum DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC～450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 48VDC | 48VDC | 48VDC |
| Output Wavefrom | Pure Sine Wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charging Current | 160A | 160A | 180A |
| Maximum AC Charging Current | 140A | 140A | 160A |
| PHYSICAL | |||
| Dimension, D×W×H | 537*390*130mm | ||
| Net Weight(kgs) | 14.2 | 14.2 | 14.5 |
