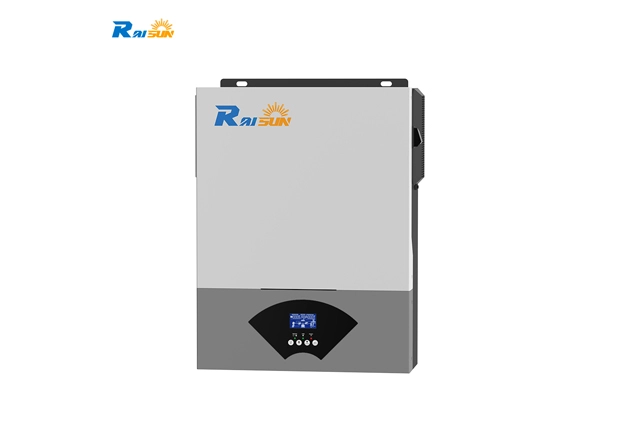

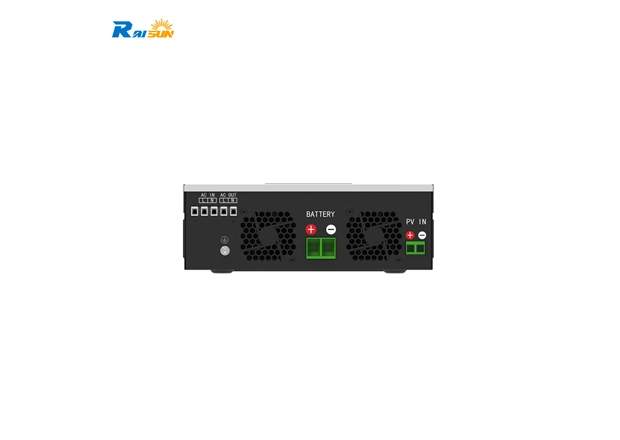

It is a pure sine wave inverter, suitable for household appliances such as TV sets, stereos, notebook computers, and desktop computers. When the AC power is interrupted unexpectedly, it will automatically switch to the inverter for power supply. It is very suitable for users who need a simple and economical inverter, which is easy to install and set up.
Provide stable, high-quality pure sine wave power supply, suitable for various electronic equipment and sensitive equipment.
Ensure electrical isolation between input and output, providing higher safety and stability.
The output frequency can be adjusted to 50Hz or 60Hz by switching the switch to adapt to the power standards of different regions.
The three-color LED status indicator provides intuitive working status display, which is convenient for users to understand the operation status of the inverter.
Passed CE, FCC, UL, E13 safety certification, passed strict certification tests, and complied with international safety standards to ensure product quality and reliability.
| Model | Raisun RSI44-1.5KW |
| Phase | 1-Phase |
| Maximum PV Input Power | 1500W |
| Rated Output Power | 1500VA/1500W |
| Maxium Solar Charging Current | 80A |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) |
| 90~280VAC(For Home Appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% |
| Surge Power | 3000VA |
| Efficiency(Peak) PV to INV | 98% |
| Efficiency(Peak) Battery to INV | 94% |
| Transfer Time | 10 ms(For Personal Computers); 20ms(For Home Appliances) |
| BATTERY & AC CHARGER | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 16VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 2000W |
| MPPT Range Operating Voltage | 90~400VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension, D×W×H | 348*270*95mm |
| Net Weight(kgs) | 4 |
| Comumication Interface | USB/RS232/GPRS/WIFI |
| OPERATING ENVIRONMENT | |
| Mumidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0℃ ～ 55℃ |
| Storage Temperature | -15℃ ～ 60℃ |
