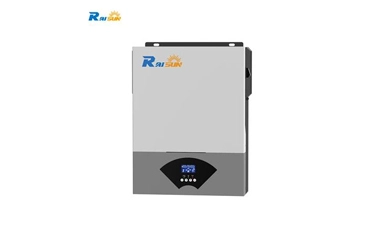

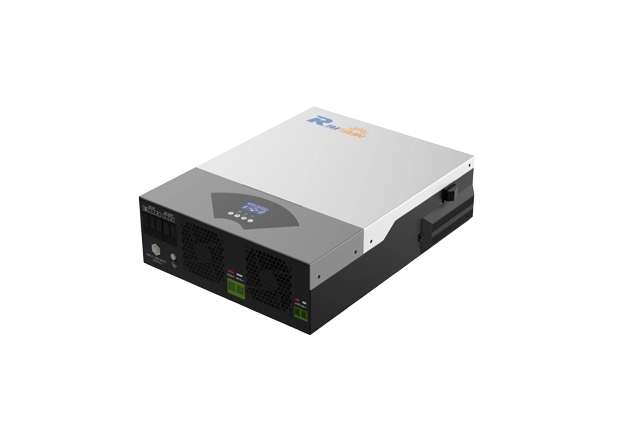

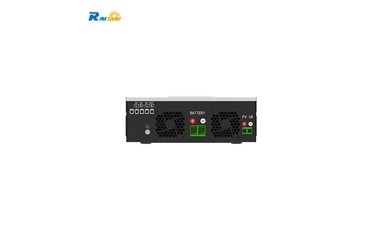

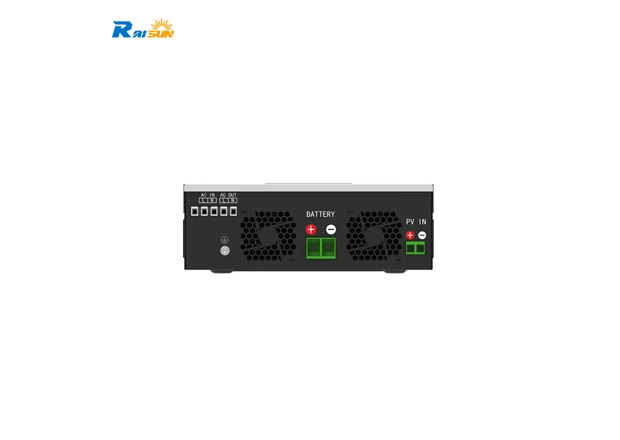

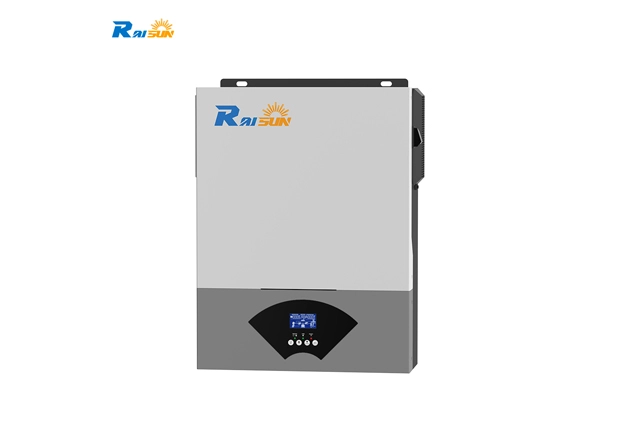

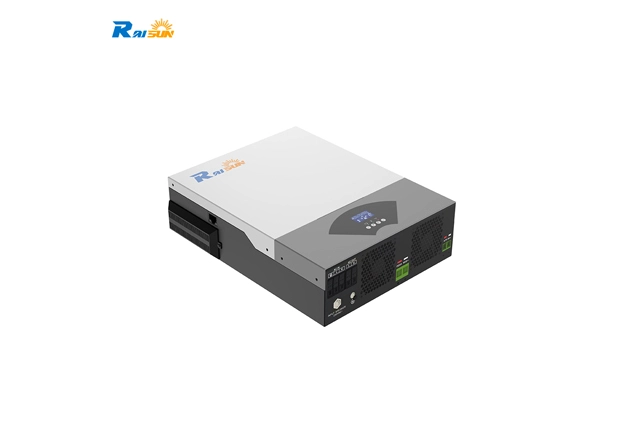

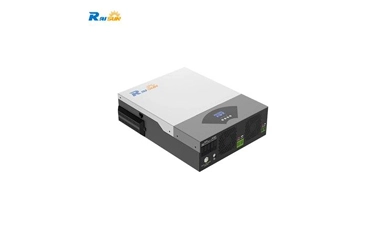

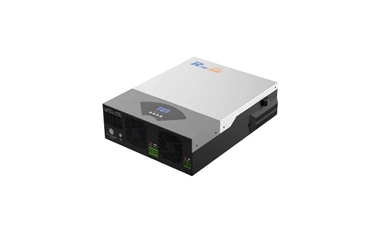

It is a high-frequency 24 volt pure sine inverter, which adopts dual microcomputer (MCU) control technology, with high product efficiency and low no-load loss. Widely used in home, communication base stations, monitoring systems, pastoral areas and other household power generation systems and DC-AC power supply systems, the 24v sine wave inverter is an ideal power supply with high stability, high reliability and high practicability.
The battery charging current can be configured through LCD settings, and can be flexibly adjusted according to application requirements. Provides personalized battery charging settings to maximize battery performance.
Flexible configuration of the input voltage range, suitable for various household appliances and personal computers. This pure wave power inverter can meet the power requirements of different devices and ensure the normal operation of the devices.
The AC/solar charger priority can be configured through LCD settings, and the energy utilization and system charging efficiency can be flexibly adjusted. Realize intelligent charging management, and flexibly choose AC power or solar energy for charging according to needs.
When the AC power is restored, 24v pure sine wave inverter will automatically restart to ensure the continuous power supply of the system. Automatically restart when the power grid is restored, ensuring continuous power supply and reducing manual intervention.
Compatible with a variety of power supply voltages or generator power, this 24v pure sine wave inverter adapts to different power supply environments, and provide stable power output. It can adapt to different power supply conditions to ensure the reliability and stability of power output.
| Model | Raisun RSI44-3.2KW | |
| Phase | 1-Phase | |
| Maximum PV Input Power | 3000W | |
| Rated Output Power | 3200VA/3000W | |
| Maxium Solar Charging Current | 80A | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
| 90~280VAC(For Home Appliances) | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
| Surge Power | 6400VA | |
| Efficiency(Peak) PV to INV | 98% | |
| Efficiency(Peak) Battery to INV | 94% | |
| Transfer Time | 10 ms(For Personal Computers); 20ms(For Home Appliances) | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | |
| Floating Charge Voltage | 27VDC | |
| Overcharge Protection | 33VDC | |
| Maximum AC Charge Current | 60A | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 3000W | |
| MPPT Range Operating Voltage | 90~400VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D×W×H | 348*270*95mm | |
| Net Weight(kgs) | 5 | |
| Comumication Interface | USB/RS232/GPRS/WIFI | |
| OPERATING ENVIRONMENT | ||
| Mumidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ ～ 55℃ | |
| Storage Temperature | -15℃ ～ 60℃ | |
